Mode : XA DIN24255 End-Suction Pump

Features:
  • Comply with DIN24255 standard
  • Back-pull-out design
  • Wide hydraulic coverage
  • Low NPSH requirement
  • High interchangeability- Entire range uses just 4 bearing assemblies
  • Now type XA has been extended to incorporate 4 new bigger sizes ie. 200/32, 200/40, 250/32 and 250/40,enlarging the performance coverage up to 1080 m3/h flow rate
  • Flexible shaft seal with mechanical seal as standard and gland packing as an option
  • Various materials available (cast iron, bronze and SS316 etc.)

Specifications:
Capacities to
1080 m3/h
Heads to
150 metres
Liquid temperature
15℃ up to +120℃
Operating speed
3600RPM Max
Pressure
PN 10, 16
45 sizes

Applications:
  • Water supply and transfer in municipal and industrial applications
  • Water treatment plants
  • Air-conditioning systems
  • Circulation in cooling and heating systems
  • Irrigation and sprinkler pumping stations

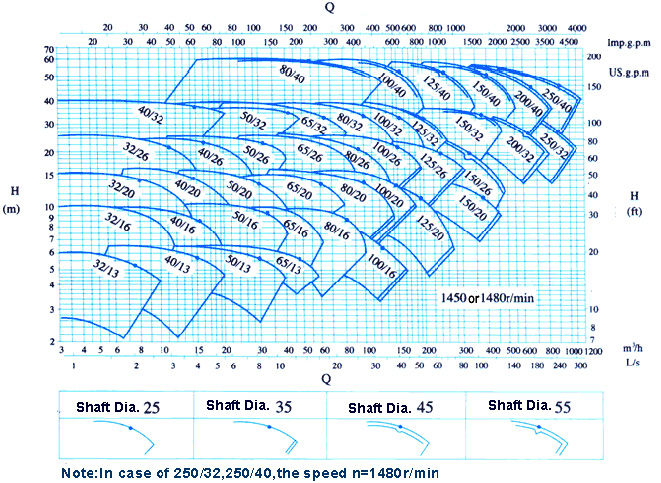

Performance range:
